Battery Type : LiFePO4
Model Number : iy 5kwh+5kw
Brand Name : Langchuan
Place of Origin : Guangdong, China
Output Power Range : 10~20 kWh
Dimension (L*W*H) : 430*230*410mm(1pc)
Weight : 43kg
System Type : All-in-one
Type : All-In-One
Communication Port : CAN, Rs485, wifi
Protection Class : IP54, IP65
Grid connection : Off grid
Inverter Matched : Bluesun Goodwe Deye Growatt Sungrow,etc
OEM/ODM : Accepatable
Nominal Voltage : 51.2Volts
Capacity : 100Ah 200Ah 300Ah
Communication : RS485/WIFI
MOQ : 1

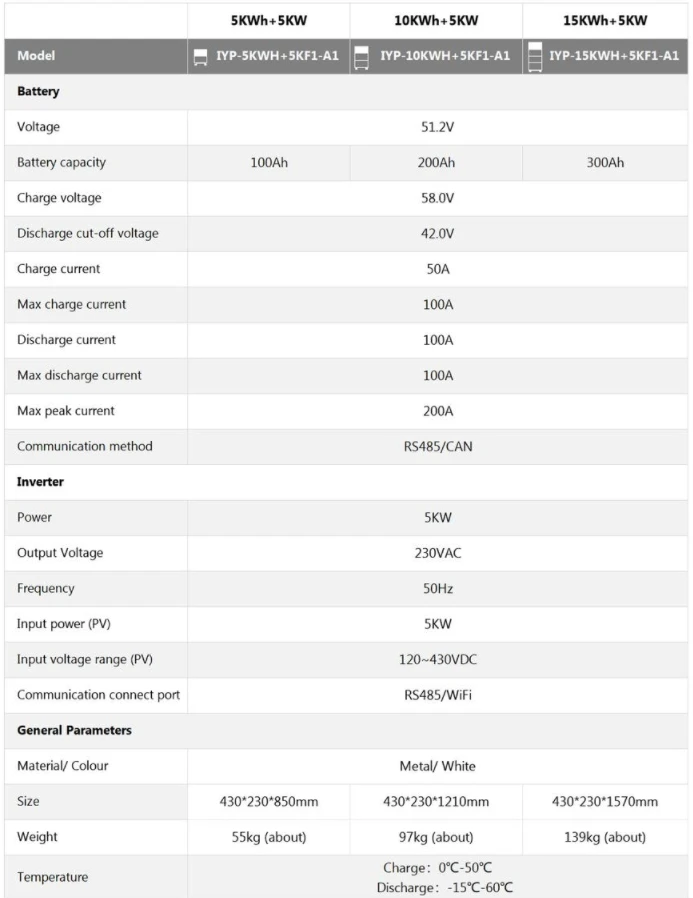

5KWh+5KW | 10KWh+5KW | 15KWh+ 5KW | ||||
Model | IYP-5KWH+5KF1-A1 | IYP-10KWH+5KF1-A1 | IYP-15KWH+5KF1-A1 | |||
Battery | ||||||
Voltage | 51.2V | |||||
Battery capacity | 100Ah | 200Ah | 300Ah | |||
Charge voltage | 58.0V | |||||
Discharge cut-off voltage | 42.0V | |||||
Charge current | 50A | |||||
Max charge current | 100A | |||||
Discharge current | 100A | |||||
Max discharge current | 100A | |||||
Max peak current | 200A | |||||
Communication method | RS485/CAN | |||||
Inverter | ||||||
Power | 5KW | |||||
Output Voltage | 230VAC | |||||
Frequency | 50Hz | |||||
Input power (PV) | 5KW | |||||
Input voltage range (PV) | 120~430VDC | |||||
Communication connect port | RS485/WiFi | |||||
General Parameters | ||||||
Material/ Colour | Metal/ White | |||||
Size | 430*230*850mm | 430*230*1210mm | 430*230*1570mm | |||
Weight | 55kg (about) | 97kg (about) | 139kg (about) | |||
Temperature | Charge:0℃-50℃ Discharge:-15℃-60℃ | |||||







|
|

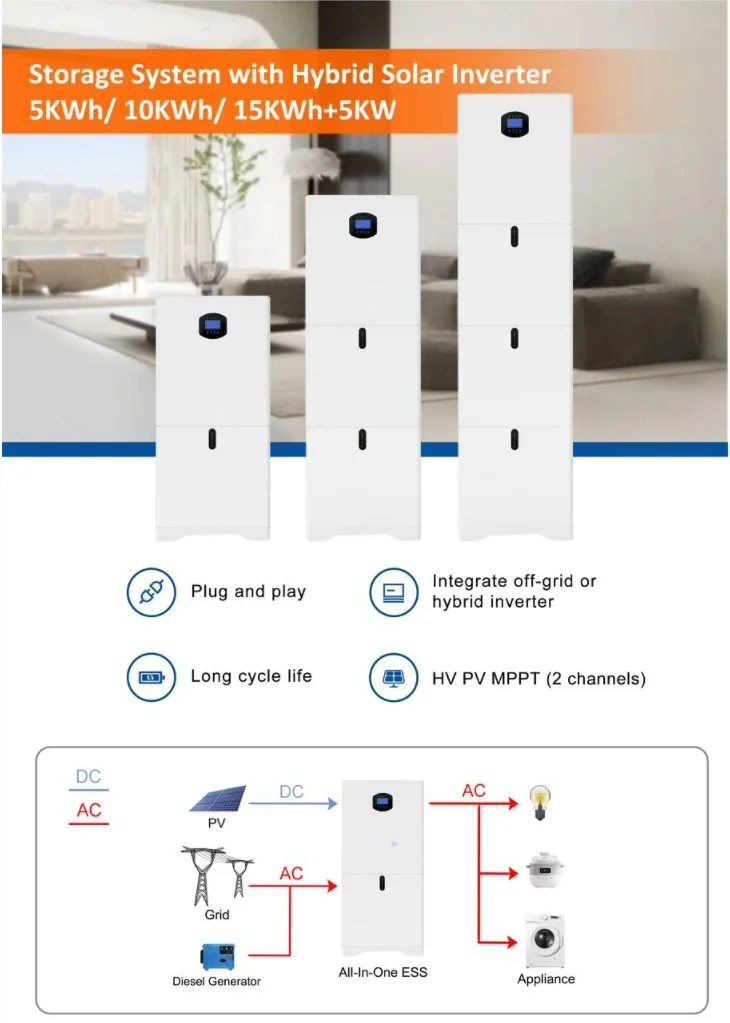

Guangdong Customized All in One Inverter 5KW and Lithium Battery 51.2v 100Ah 200Ah Whole House Solar Battery Images |
